Features:

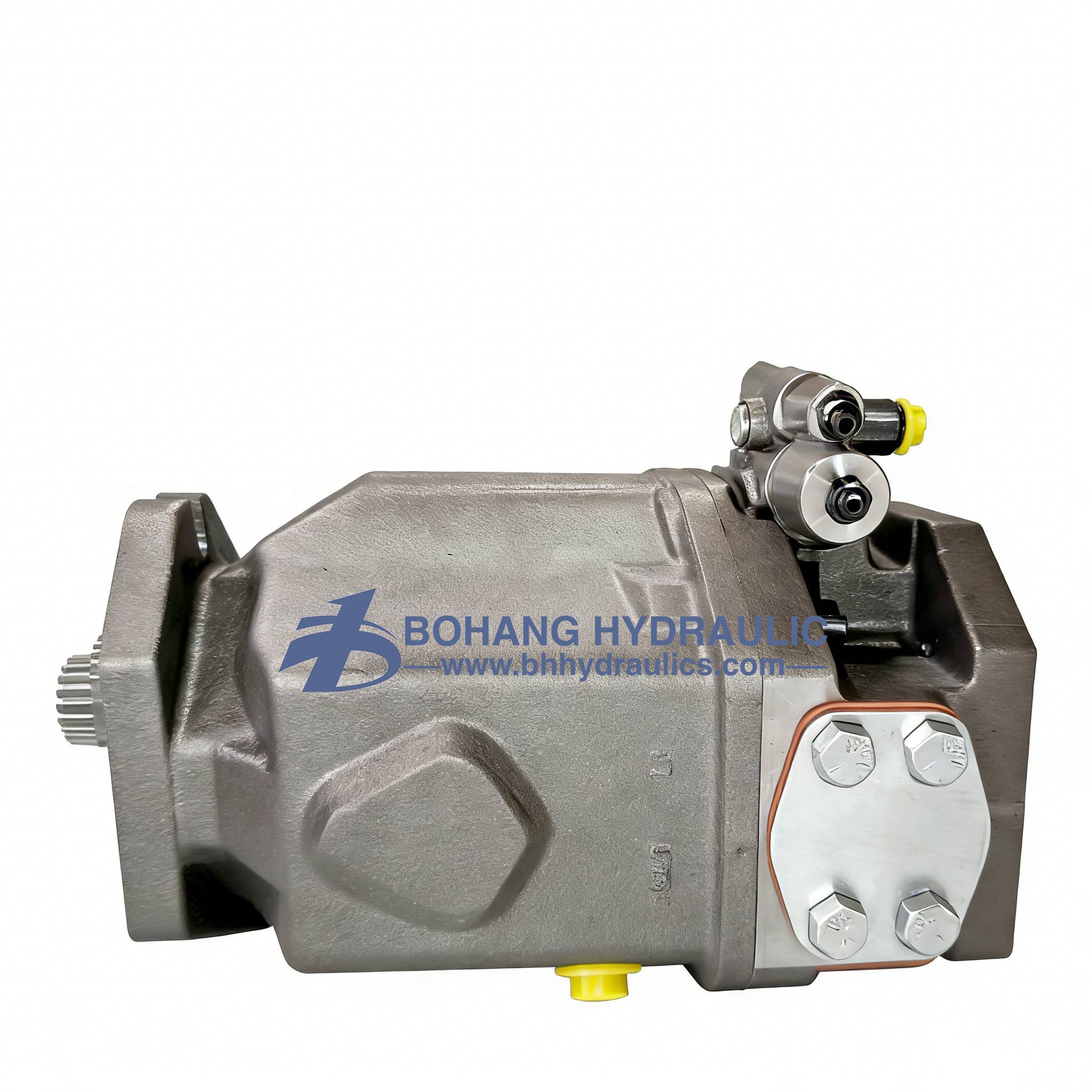

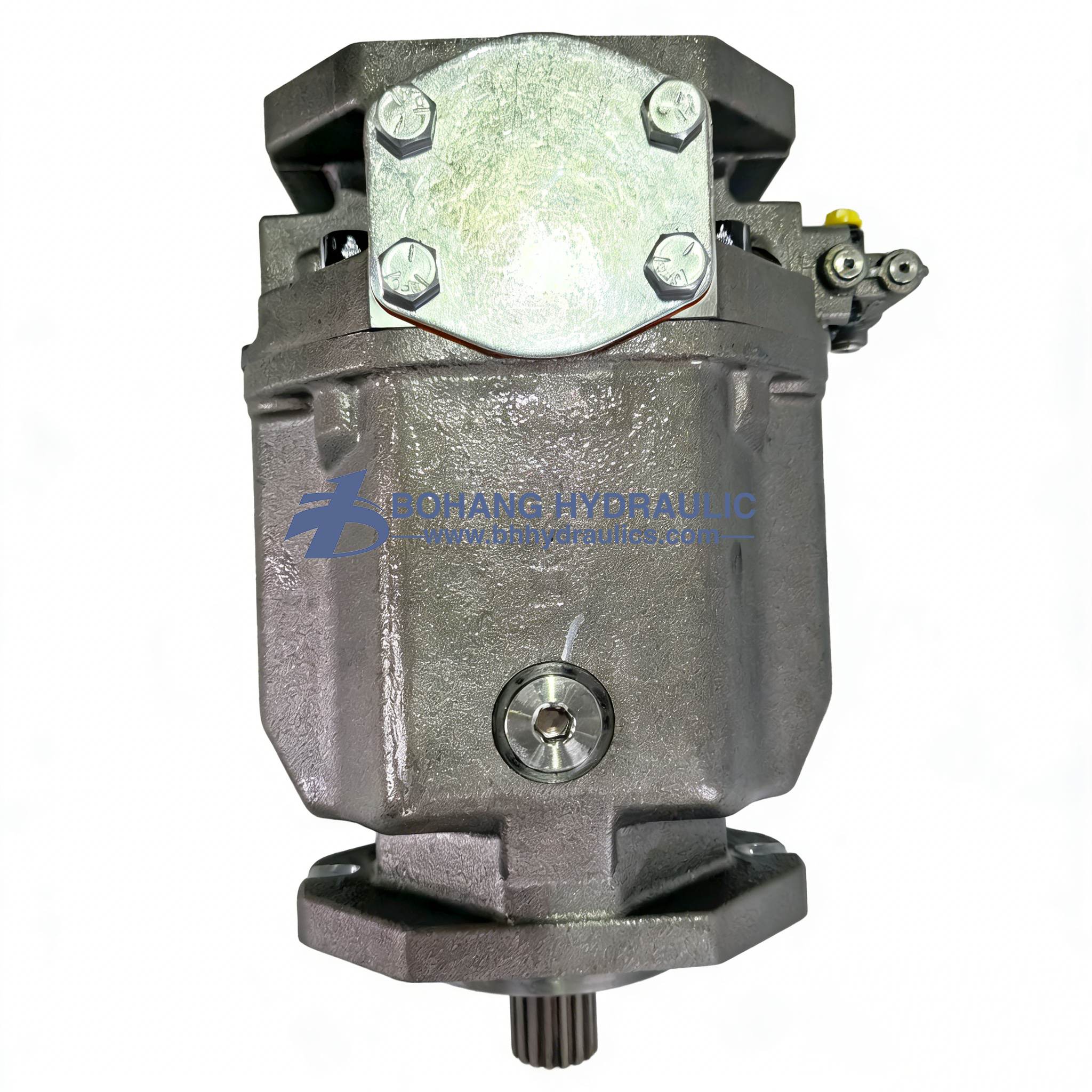

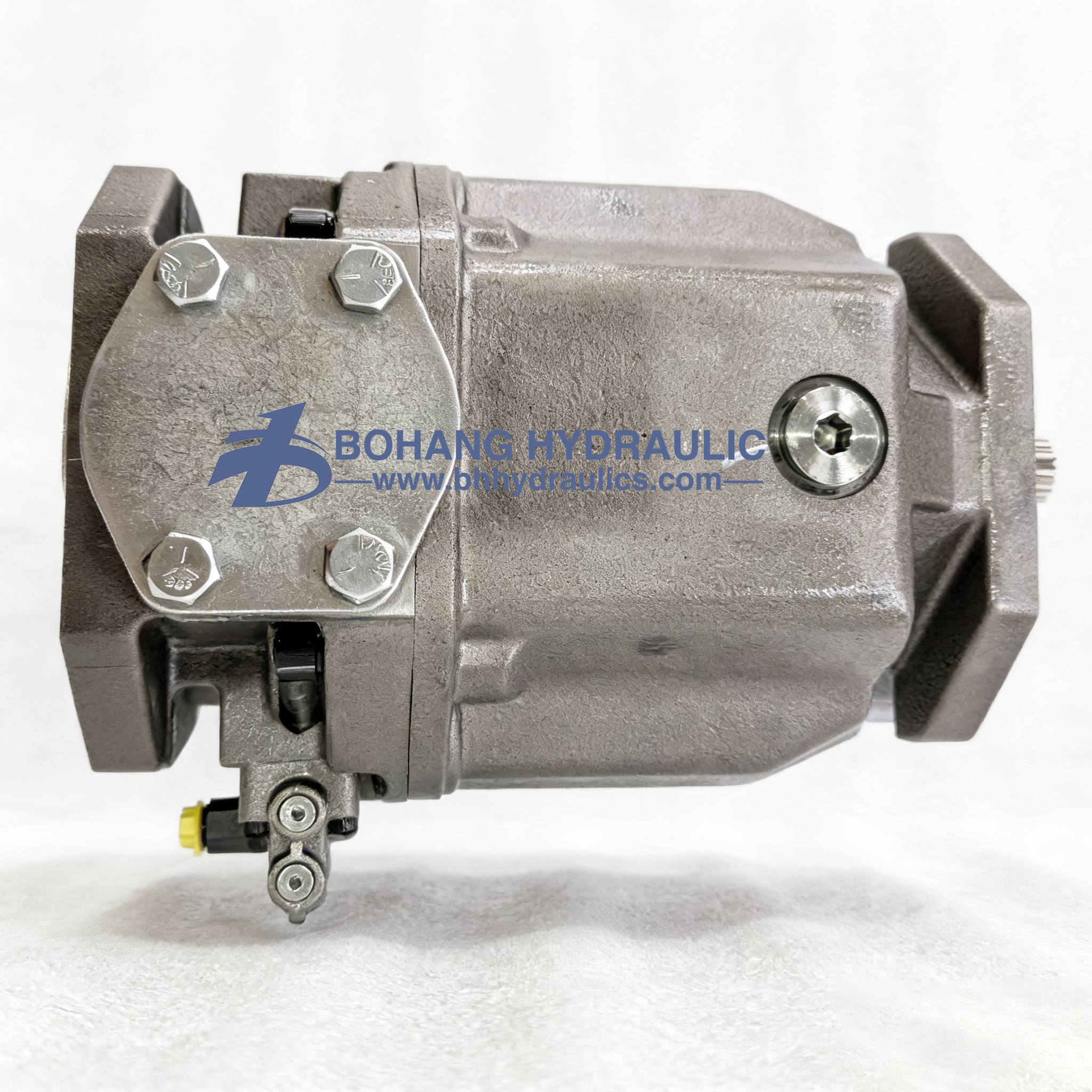

▶ Variable axial piston pump of swashplate design for
hydrostatic drives in open circuits.
▶ The flow is proportional to the drive speed and the
displacement.
▶ The flow can be infinitely varied by adjusting the swashplate angle.
▶ Stable storage for long service life
▶ High, permissible drive speed
▶ Favorable power-to-weight ratio – compact dimensions
▶ Low noise
▶ Excellent suction characteristics
▶ Electro-hydraulic pressure control
▶ Short response times
| Size | 28 | 45 | 63 | 85 | |||
| Displacement | Vg max | cm³ | 28 | 45 | 63 | 85 | |
| geometric, per revolution | |||||||
| Nominal pressure | pnom | bar | 210 | 210 | 210 | 210 | |
| Maximum pressure | pmax | bar | 250 | 250 | 250 | 250 | |
| Maximum speed 1) | at Vg max | nnom | rpm | 3200 | 2900 | 2700 | 2700 |
| Flow | at Vg max and nnom | qV nom | l/min | 90 | 131 | 170 | 230 |
| Power | at qV nom and pnom | P | kW | 31 | 46 | 59 | 80 |
| Torque | at Vg max and pnom | M | Nm | 94 | 150 | 210 | 284 |
| Weight (approx.) | m | kg | 11.5 | 14 | 18 | 22 | |
| Machine | Hydraulci Pump/Motor | |||||||
| Construction Machinery | ||||||||
 |
Concrete mixer | AA2FM | A4VTG | EATON 5423 | ||||
| Concrete transport pump | A2FO | A4VG | A11V | |||||
| Wet spraying machine | A11V | A2FM | A10V | |||||
| Road roller | A6VE | A6VM | A4VTG | P2VC | ||||
| Paver | A6VE | A6VM | P2VC | P4VC | ||||
| Grader | A6VM | P2VC | ||||||
| Asphalt spreader | P1V(A)O | A2FM | ||||||
| Milling machine | P1V(A)O | A2FE | A2FM | |||||
| Crawler excavator | P3VO | |||||||
| Wheel excavator | A6V | A6VM | P3VO | |||||
| Loader | M3VE | A6VM | P2VC | A10VSO | A2FM | |||
| Bulldozer | A6VM | P2VC | ||||||
| Material Handling Machinery | ||||||||
 |
Crane | A2FE | A6V | A6VM | P2VC | P1V(A)O | A10VSO | A2FM |
| Forklift | ||||||||
| Drilling Rig | A2FE | A6VE | A6VM | P1V(A)O | A10VSO | A2FM | ||
| Heading Machine | A2FE | P1V(A)O | ||||||
| Mining Truck | A10VSO | |||||||
| Agricultural Machinery | ||||||||
 |
Tractor | A6VE | P2VC | P4VC | A10VSO | |||
| Rice Transplanter | ||||||||
| Combine Harvester | A6VE | A4VTG | P2VC | |||||
| Pesticide machine | A6VE | A4VTG | P2VC | A10VSO | ||||
| Rice harvester | A6VE | A4VTG | P2VC | P4VC | ||||
| Sugar Cane Harvester | A6VE | P2VC | P4VC | A10VSO | A2FM | |||
| Municipal Machinery | ||||||||
 |
Airport Equipment | A6VM | P2VC | P1V(A)C | A10VSO | A2FE | A2FM | |
| Firfighting Truck | A7VO | P1V(A)C | A10VSO | |||||
| Snow Sweeper | P2VC | A10VSO | ||||||
| Aerial work platform | P4VC | A10VSO | ||||||
| Electric Power | A2FE | A6VE | P2VC | P4VC | ||||
| Environmental Sanitation Vehicle | ||||||||
| Anti Dust Vehicle | ||||||||
| Oil And Gas Equipment | ||||||||
 |
Liquid Nitrogen Pump Truck | P1V(A)O | ||||||
| Fracturing Truck | A6VM | P2VC | A2FO | A2FM | ||||
| Fracturing Blender Truck | A6VM | P2VC | A10VSO | A2FM | ||||
| Coil Tubing | A10VSO | A2FE | ||||||
| Pipelayer | A2FE | A6VM | P1V(A)O | |||||
| Industrial Application | ||||||||
 |
Injection molding machine | |||||||
| Shoe-making machine | A10VSO | |||||||
| Metal forming machinery | A7V | |||||||
| CNC machine tool | PV | A10VSO | ||||||
| Metallurgy and die-casting | E-A4VG | |||||||
| Flow Machine | ||||||||
 |
Reach Stacker | P3VO | ||||||
| Heavy Forlift | A6VM | A4VTG | A10VSO | |||||
| Tire Crane | A6VM | |||||||
| Maritime Port | ||||||||
 |
Ship | A6VE | A6VM | P1V(A)O | A10VSO | A2FE | A2FM | |
| Offshore platform | A6VE | A6VM | P1V(A)O | A10VSO | A2FE | A2FM | ||
| Wind power | P1V(A)O | |||||||
| Dredging vessels | P1V(A)O | |||||||
| Others | ||||||||
| Marine Crane | A 11VLO | A2FM | FMF | A4VG | A6VM | |||
