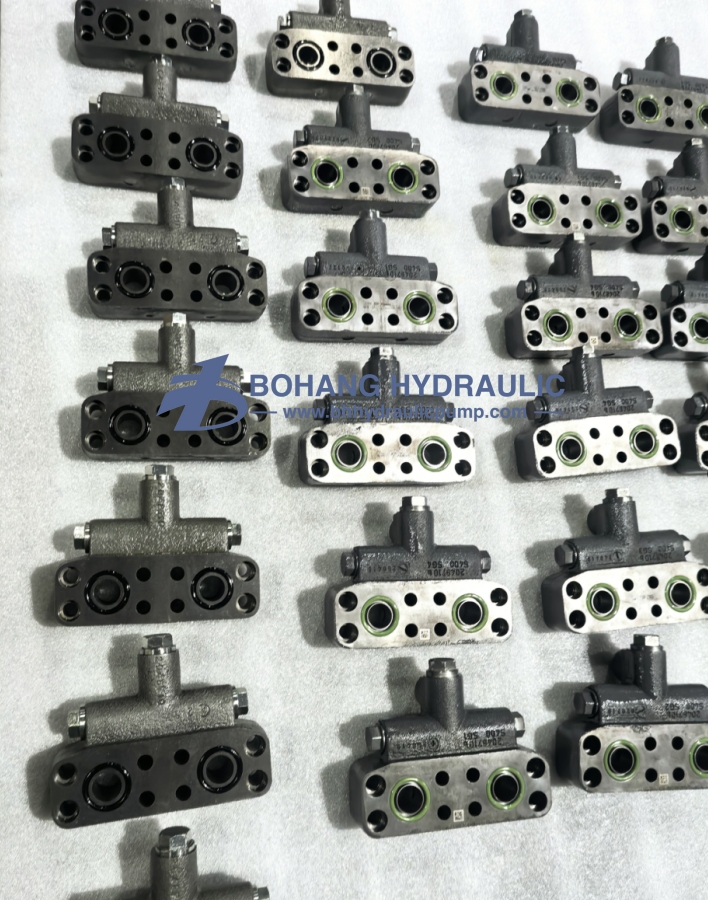

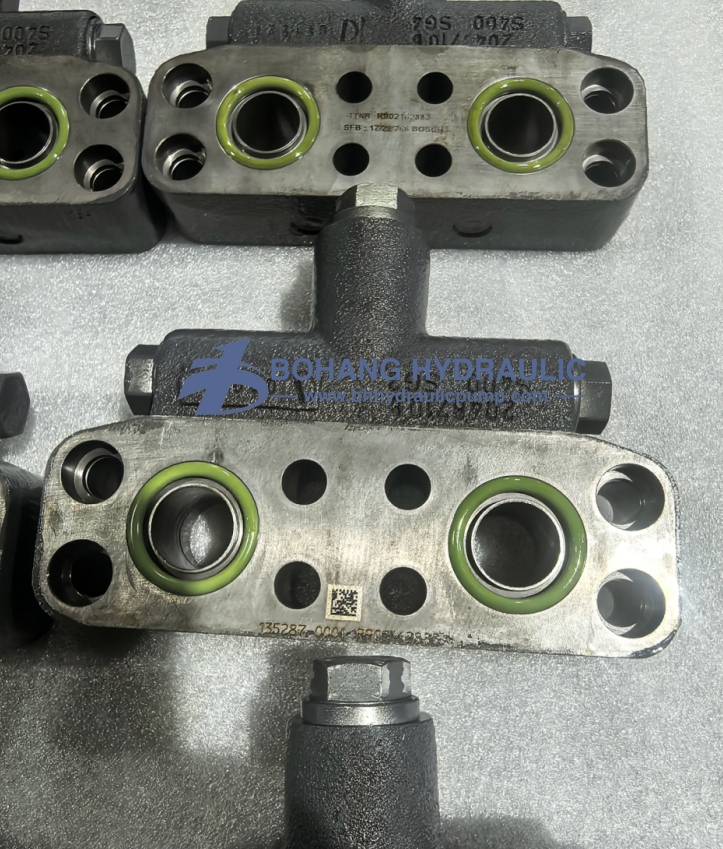

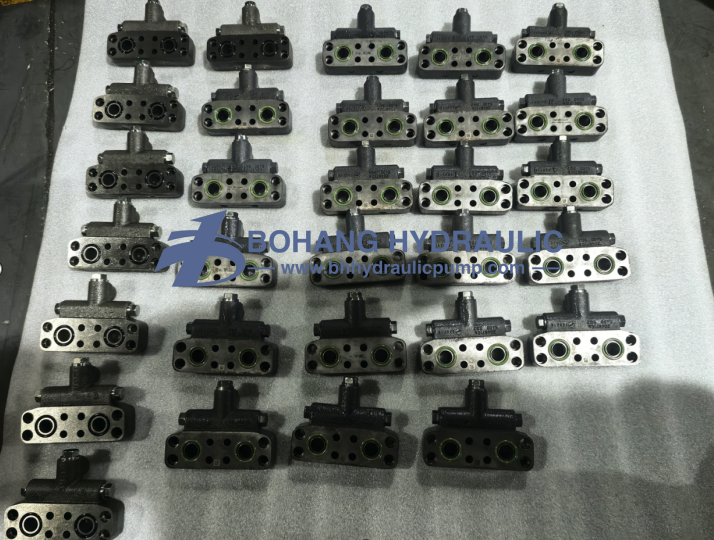

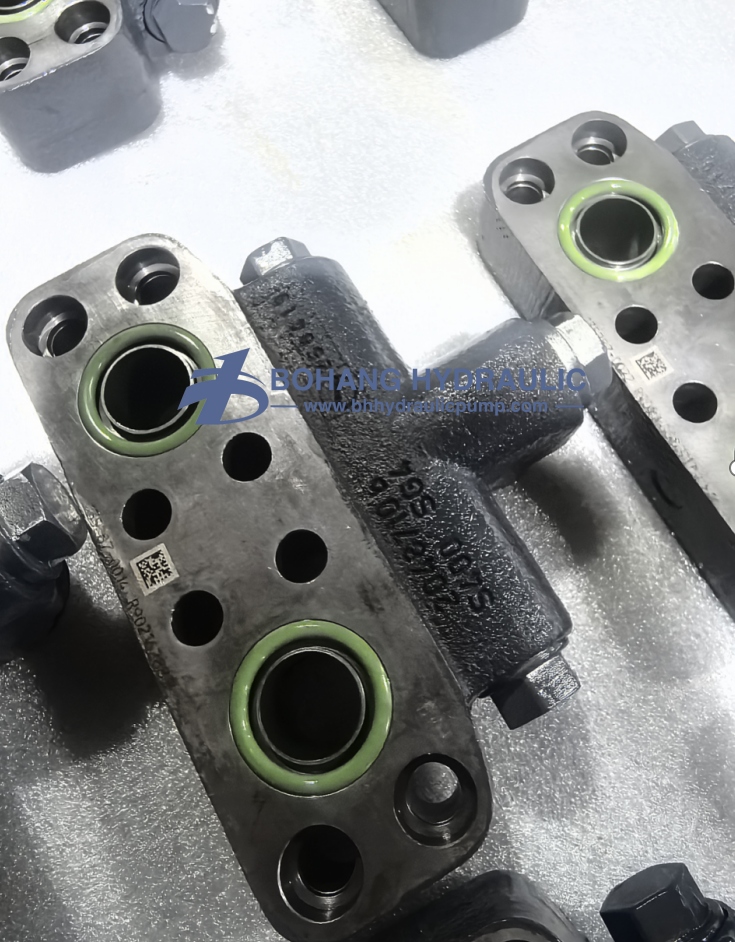

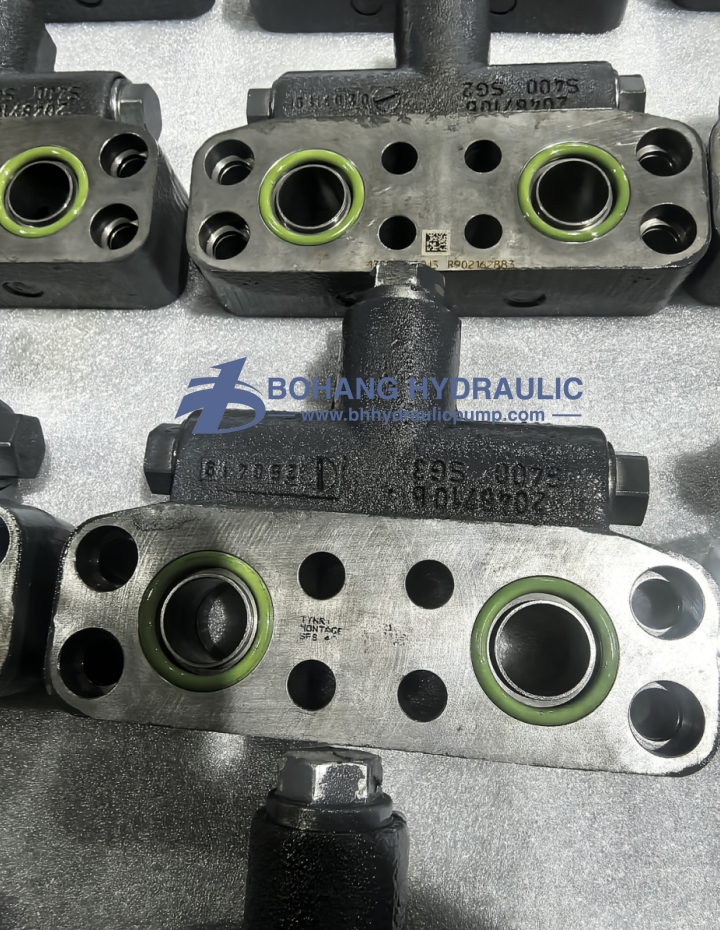

Cartridge Type One-Way Flow Control Valve SV-F-75-S-10-M-V-16-C-3-D4-H16-0
0a5466d6-6f53-4ec0-bfd1-332a2b75d338
1fa82396-a7ce-4872-a3c6-86413c3e6873
8c7cdd45-0b3c-4543-9d3b-6b10088d8607
923e5123-ae6e-48e9-9fe9-d1f83e453543
92a43e8f-f7a3-4c34-a8a1-5f858f3d91b5

Replacement Check Valve SV Series

Features :
▶  For subplate mounting
▶  Porting pattern according to ISO 4401-03-02-0-05 and
ISO 5781-03-04-0-00
▶  For the leak-free blocking of one actuator port
▶  With internal or external pilot oil return, optional
▶ Various cracking pressures, optional
▶ With or without pre-opening, optional
▶  Check valve installation separately available
▶  Corrosion-resistant design, optional

general
Weight kg Approx. 0.8
Installation position Any
Ambient temperature range °C –30 to +80 (NBR seals)
–20 to +80 (FKM seals)
MTTFd values according to EN ISO 13849 Years 150 (for further details see data sheet 08012)
hydraulic
Maximum operating pressure bar 315
Maximum flow l/min 60
Pilot pressure bar 5 to 315
Hydraulic fluid °C See table below
Hydraulic fluid temperature range
(at the valve's working ports)		 –30 to +80 (NBR seals)
–20 to +80 (FKM seals)
Viscosity range mm2/s 2.8 to 500
Maximum permitted degree of contamination of the hydraulic
fluid - cleanliness class according to ISO 4406 (c)		 Class 20/18/15 1)
Direction of flow See Symbols on page 2
Pilot volume – Port X cm3 0.68
– Port Y (only type SL) cm3 0.58
Control area ratio
(For areas, see
sectional drawing on
page 3)
– Version "A"
– Version "B" 		 A3/A2 ~ 1/13                                                                            A1/A2 ~ 1/3                                                                                                   A4/A2 ~ 1/7
