Rexroth Replacement Pilot-Operated Solenoid Relief Valve DBW15 BG2-52_100-6EG24N9K4

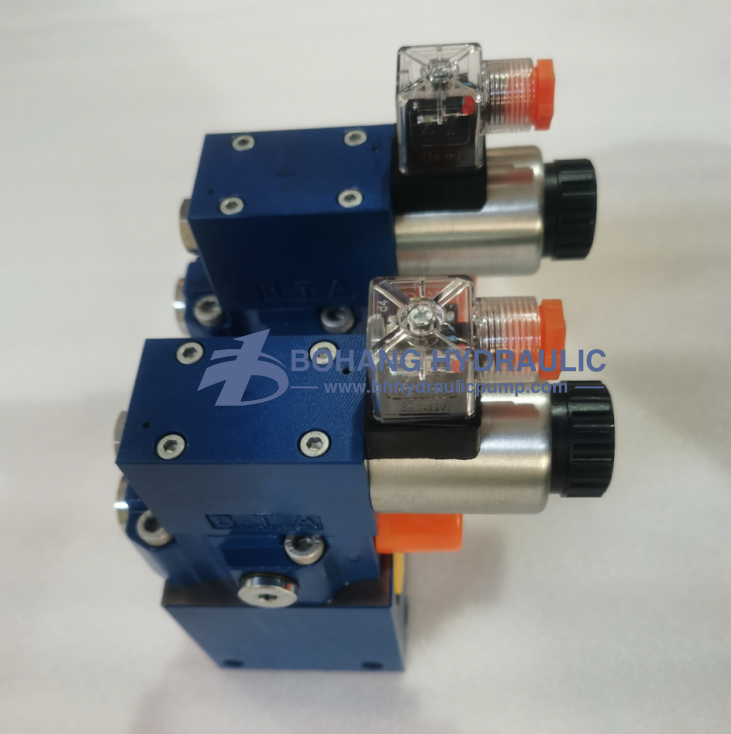

dbw15 pilotoerated solenoid relief (2)

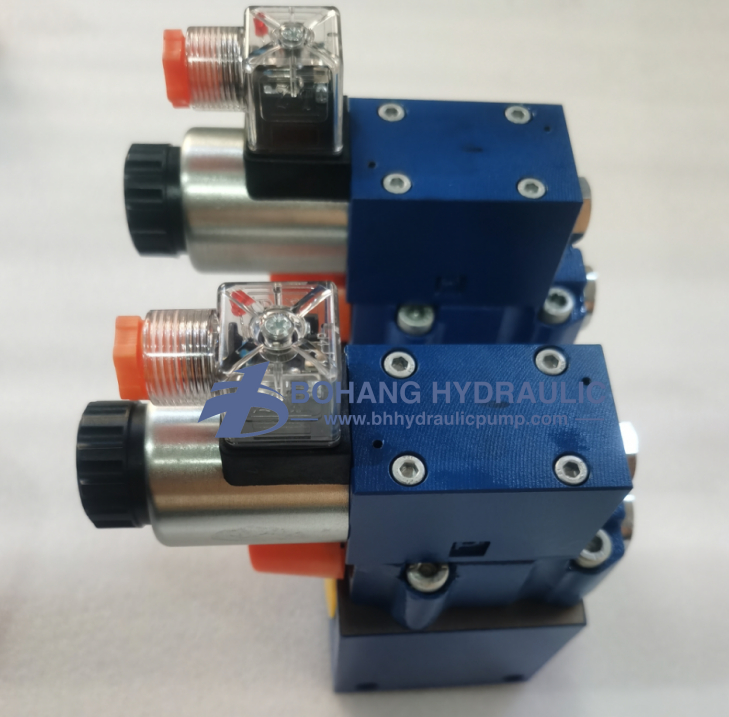

dbw15 pilotoerated solenoid relief (3)

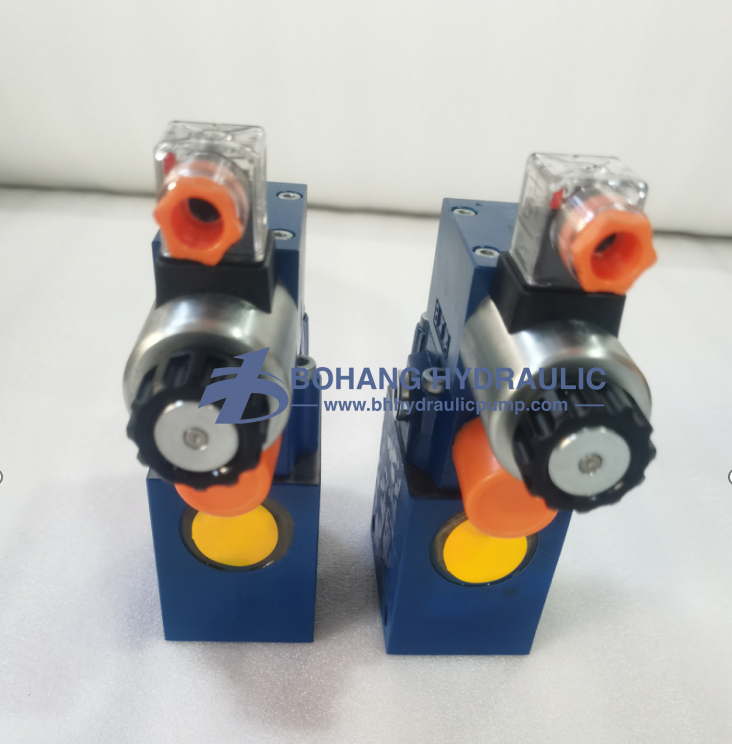

dbw15 pilotoerated solenoid relief (1)

Replacement Solenoid Operated Pressure Relief Valve DBW15 Series

Features :
▶ For subplate mounting
▶ Porting pattern according to ISO 6264
▶ For threaded connection
▶ Solenoid-actuated unloading via an installed
directional spool valve or directional seat valve
▶ Switching shock damping, optional (DBW type only)
▶ Corrosion-protected design
▶ CE conformity according to the Low-Voltage
Directive 2014/35/EU for electrical voltages > 50 VAC
or > 75 VDC
▶ UKCA conformity according to the "Electrical
Equipment (Safety) Regulations SI 2016/1101" for
electrical voltages > 50 VAC or > 75 VDC
▶ Solenoid coil as approved component with UR marking
▶ Size 10 … 32
▶ Component series 5X
▶ Maximum operating pressure 350 bar
▶ Maximum flow 650 l/min

General
Sizes   NG10 NG16 NG25
"DB.. 20"		 NG25
"DB.. 25"		 NG32
Type of connection   Subplate mounting; threaded connection
Porting pattern   ISO 6264-
06-09-*-97		 – ISO 6264-
08-13-*-97		 – ISO 6264-
10-17-*-97
Mass          ▶ Subplate
                    mounting




                 ▶ Threaded
                    connection		 –  Type DB…                                       kg 2.6  – 3.5  – 4.4
–  Type DBW…                                    kg 4.05  – 4.95  – 5.85
– Type DBC…                                      kg 1.2
– Type DBWC…                                   kg 2.65
– Type DBC10 or 30 …                        kg 1.5
– Type DBWC 10 or 30 …                    kg 2.95
– Type DB…G                                     kg 5.3  5.2  5.1  5.0  4.8
– Type DBW…G                                   kg 6.75  6.65  6.55  6.45  6.25
Installation position   any
Ambient temperature
range		 ▶  Type DB…                                          °C –20 … +80 (NBR seals)
–15 … +80 (FKM seals)
▶  Type DBW…                                       °C –20 … +50 (NBR seals)
–15 … +50 (FKM seals)
Conformity ▶ CE according to Low-Voltage Directive
   2014/35/EU 1), tested according to		 EN 61000-6-2 and EN 61000-6-3 (classified as component)
▶ UKCA according to "Electrical
    Equipment (Safety) Regulations
   SI 2016/1101" 1), tested according to		 EN 61000-6-2 and EN 61000-6-3 (classified as component)
Hydraulic
Maximum operating
pressure		 ▶ Port P, X


▶ Port Y, T              – Type DBW		 bar 350
bar 315
bar 315
bar 210 (version "6EG")
180 (version "6EG…=UR")
160 (version "6EW" and "6EW…=UR")
100 (version "6SM")
Hydraulic fluid   see table on page 8
Hydraulic fluid temperature range
(at the valve working ports)		 °C –20 … +80 (NBR seals)
–15 … +80 (FKM seals)
Viscosity range mm2/s 10 … 800
Maximum admissible degree of contamination of the
hydraulic fluid; cleanliness class according to ISO 4406 (c)		   Class 20/18/15 2)
Maximum flow                        ▶ Subplate mounting
                                           ▶ Threaded connection		 l/min 250  – 500  – 650
l/min 250  500  500  500  650
Maximum set pressure bar 50; 100; 200; 315; 350
Minimum set pressure   flow-dependent (see characteristic curves page 9)
